產品類型:振蕩篩
上架時間:2022-07-25
瀏覽次數:1443
產品簡述:應用:本機適用于醫藥、化工、食品等行業對干粉物料的粒度進行分選。This machine is applied in the sorting of the granule size of dry powder materials in trades of medicine, chemical and foodstuff etc. 應用圖:特點:該機由立式激振電機,篩底, 網架, 篩粉室,橡膠振蕩碗等各緊固件組成。本機可用于單層...
產品詳情

應用:

本機適用于醫藥、化工、食品等行業對干粉物料的粒度進行分選。

This machine is applied in the sorting of the granule size of dry powder materials in trades of medicine, chemical and foodstuff etc.


應用圖:

特點:

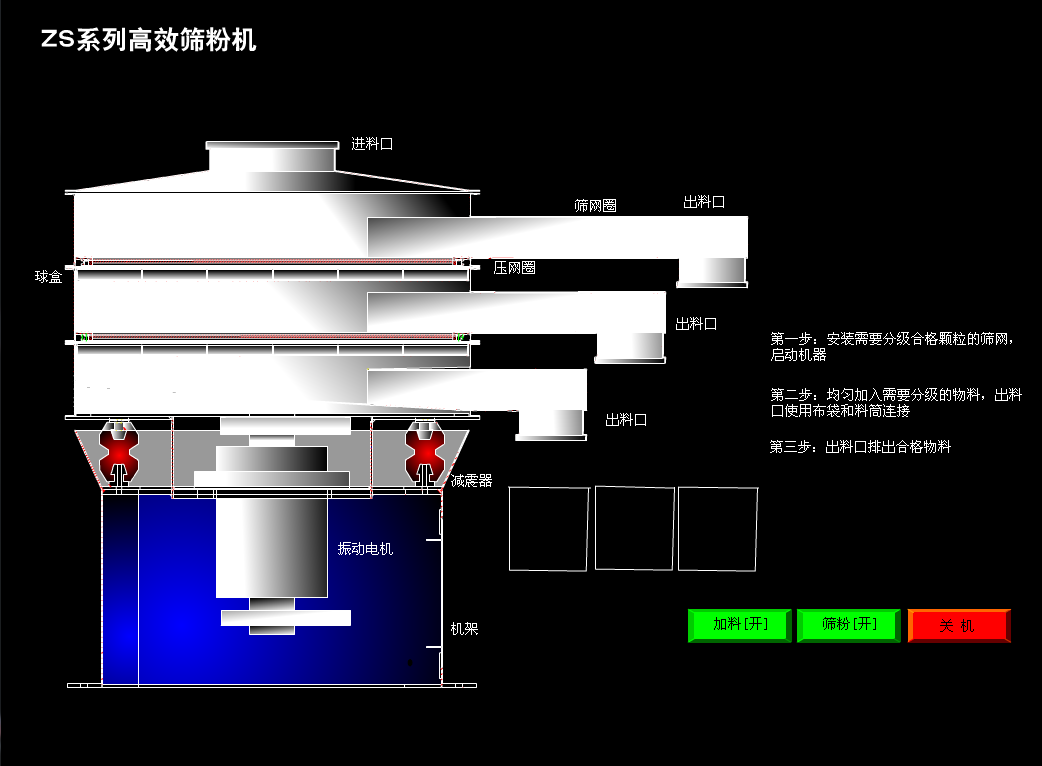

該機由立式激振電機,篩底, 網架, 篩粉室,橡膠振蕩碗等各緊固件組成。本機可用于單層或多層篩網分選使用,具有結構緊湊、操作維修方便,運轉平穩、噪音低、處理物料量大、細度小,適用廣泛等優點。

This machine is composed of vertical vibration motor,a sieve bottom, a mesh frame, sieve room,rubber vibrating bowl, and all fastening pieces.It can be operated for sorting purpose either in single sieve or multi-sieves with a compact structure,ease operating and repairing, smooth running, low noise,large target material-treating, good fineness and wide applicability.

技術參數:

型號

STGZ-400

STGZ-600

STGZ-800

STGZ-1000

STGZ-1200

產量(kg/h)

20-200

150-1200

200-2000

250-3000

300-4000

外形尺寸

600*600*1000

800*800*1100

1100*950*1150

1100*1100*1250

1300*1300*1400

功率

0.55

0.55

0.75

1.5

1.5

過篩目數(mesh)

20-180

20-180

20-180

20-180

20-180

振動頻率(r/min)

1500

1500

1500

1500

1500

重量

120

180

220

300

400

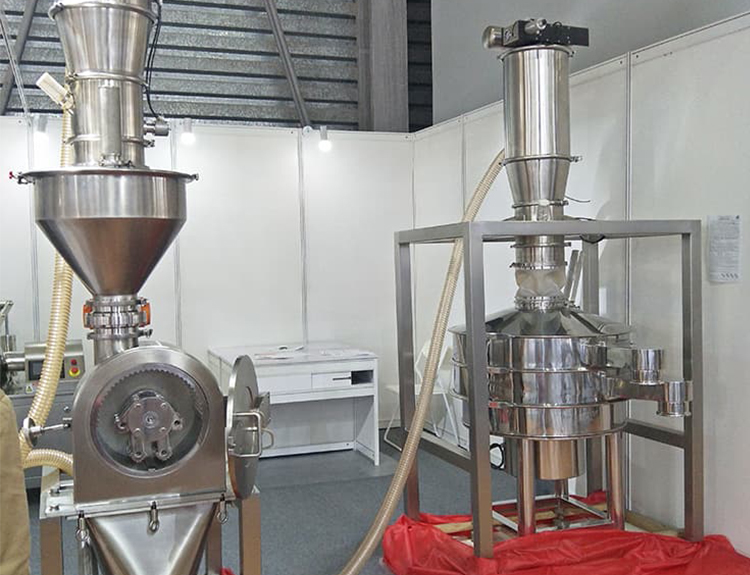

應用案例:
